Not all cranioplasty cases present equal levels of technical demand. A unilateral parietal defect with well-defined margins and minimal prior surgical history is a fundamentally different reconstruction problem from a large bilateral frontal defect in a patient with multiple prior operations, retained hardware, and compromised soft tissue coverage. The latter category (encompassing bilateral craniotomies, extensive frontal bone defects, and cases with complicating factors such as retained mesh or bone fragments) represents the high end of complexity in cranial reconstruction.

This article addresses the specific challenges presented by complex cranial defect cases and the design and manufacturing approaches that best serve them.

Defining Complex Cranial Defect Cases

Complexity in cranioplasty can be characterized along several dimensions. Defect size is the most obvious: large defects spanning more than one anatomical region require implants with correspondingly larger surface areas and more demanding edge-fit geometry. But size alone does not capture the full picture.

Bilateral craniotomy defects (those crossing the midline) introduce the additional challenge of symmetry. Because the human cranium is bilaterally symmetric under normal conditions, an implant spanning the midline must restore that symmetry in a visible, externally palpable region. Asymmetries that might be acceptable in a posterior defect become conspicuous in the frontal region, where the implant’s contour is reflected in the patient’s forehead profile.

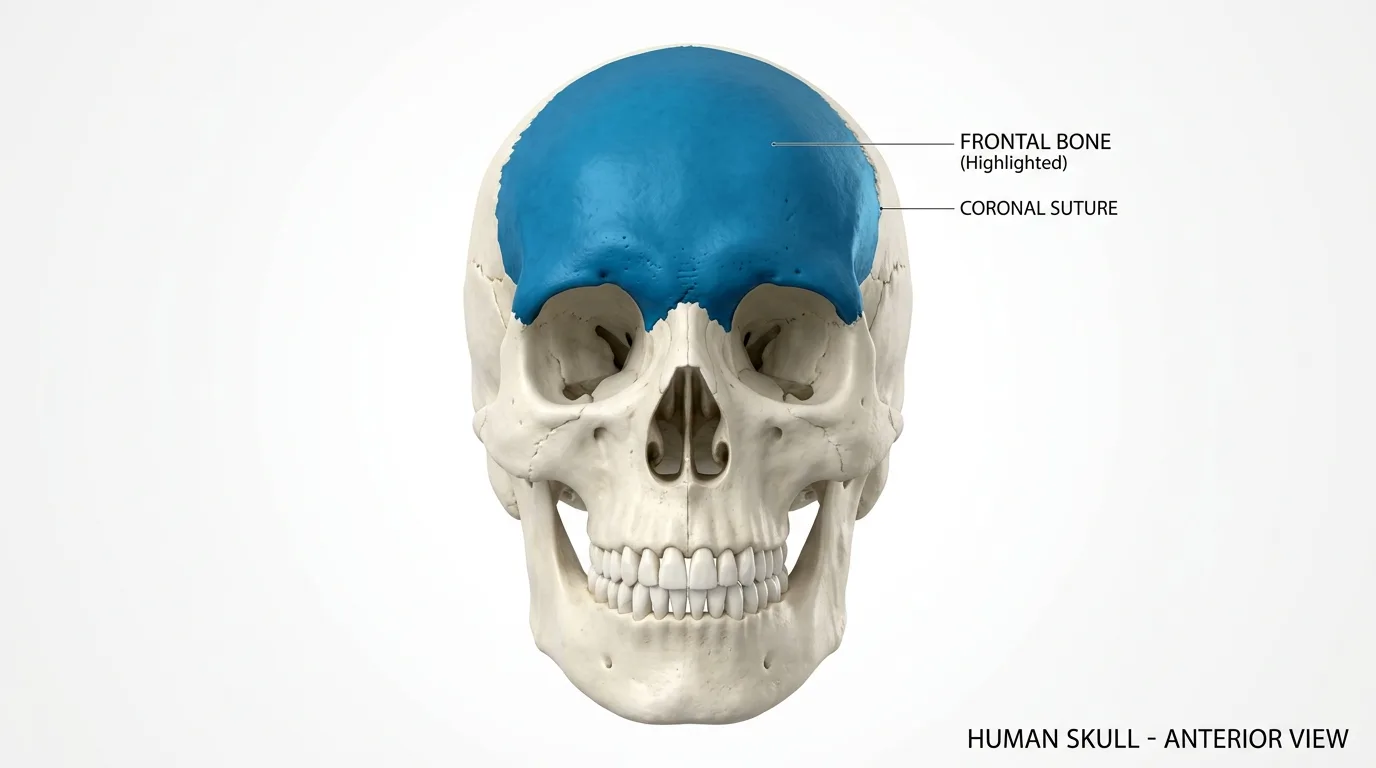

Frontal bone defects carry their own anatomical demands. The frontal bone forms the superior orbital rims, the glabellar region, and the anterior cranial floor. Reconstruction in this area requires attention to how the implant interacts with orbital anatomy, the frontal sinus (when present), and the overlying soft tissue drape. An implant that is geometrically correct in its superior surface but poorly designed at its inferior margins may fail to restore natural facial framing or may create sinus-related complications.

Prior surgical history adds another layer. Patients who have undergone decompressive craniectomy following traumatic brain injury or stroke, or who have had prior cranioplasty attempts, often present with local tissue changes, retained hardware, or modified bone margins that alter the defect geometry from what standard anatomical references would predict.

Decompressive Craniectomy and Secondary Reconstruction

A significant driver of complex cranioplasty volume is the decompressive craniectomy, a procedure performed in acute neurosurgical emergencies to relieve intracranial pressure by removing a large portion of the skull. While the life-saving utility of this procedure is well established, it creates a substantial secondary reconstruction burden.

Decompressive craniectomy defects are often large, involving the frontal, temporal, and parietal regions on one or both sides. The removed bone flap may be preserved for reimplantation, but autologous bone reimplantation carries risks of resorption, infection, and fragmentation that lead many surgical teams to favor alloplastic reconstruction. When alloplastic implants are selected, the implant must be designed to match the contour of a defect that was defined by the emergency craniectomy, which may not have been planned with secondary reconstruction geometry in mind.

Bilateral decompressive craniectomies, while less common, represent the most demanding reconstruction scenario in this category. The implant must restore bilateral cranial contour, manage midline geometry, and integrate cleanly with whatever bone and prior hardware remains.

Implant Design Considerations for High-Complexity Cases

For complex defect cases, the design of the implant (not just its material) has direct implications for surgical outcome. Several design factors merit attention.

Margin geometry determines how the implant interfaces with surrounding bone. A well-designed implant has margins that conform closely to the defect edges, minimizing gaps that could allow implant rocking, fluid accumulation, or fibrous tissue interposition. In cases where bone margins are irregular or beveled, the implant geometry must account for actual defect topography rather than an idealized or simplified representation of it.

Retention and fixation planning should be integrated into the implant design from the outset. Most cranioplasty implants are secured with titanium fixation systems, specifically plates and screws at the implant margins. Designing the implant with appropriate thickness and material properties at fixation zones, and anticipating the location of fixation points relative to defect geometry, supports reliable intraoperative seating.

For cases involving frontal sinus anatomy, the implant design must address whether the sinus will be obliterated or preserved, and the inferior implant geometry must be shaped accordingly. An implant that incompletely covers the sinus opening or creates dead space at the sinus interface introduces risk of mucocele formation or infectious complication.

The Role of Preoperative Modeling

Physical or 3D-printed skull models derived from CT data serve several functions in planning complex cranioplasty cases. They provide the surgical team with a three-dimensional representation of the defect and its surrounding anatomy that is more immediately interpretable than axial imaging slices. They allow for trial fitting and orientation confirmation before the actual procedure.

For bilateral or frontal cases where symmetry is critical, models allow the surgical team to evaluate the projected aesthetic result of the implant before fabrication is finalized. Identifying concerns at the model review stage, rather than at the operative field, is materially more efficient and supports better outcomes.

Models are also useful for trainee education and preoperative briefing of operating room staff, ensuring that the entire team understands the planned reconstruction before the case begins.

Criteria for Selecting a Patient-Specific Implant Manufacturer

Surgeons managing complex cranioplasty cases face a practical choice in selecting a manufacturing partner. For routine cases, many implant fabricators can deliver adequate results. For high-complexity cases, the selection criteria should be more specific.

Relevant factors include the manufacturer’s experience with bilateral and frontal defect geometries, the design review process they apply to complex cases, the level of anatomical expertise involved in implant geometry refinement, and the communication workflow that supports case-specific questions and design iterations before fabrication is committed.

Turnaround time matters in elective reconstruction planning, but it should not be the primary selection criterion for cases where fit quality will have significant operative implications. A well-fitting implant that takes an additional week to fabricate is generally preferable to a poorly fitting implant delivered faster.

Summary

Bilateral craniotomy and frontal bone defects occupy the high end of the cranioplasty complexity spectrum. Managing these cases well depends on accurate imaging, careful implant design with attention to symmetry and regional anatomy, and a fabrication process capable of delivering the geometric precision these cases require. Patient-specific implants, designed from the individual patient’s CT data and refined with appropriate expertise, represent the current standard of care for this population.

For additional context on the design and fabrication pipeline supporting these cases, see the related articles on CT-to-implant workflows and the contribution of medical artistry to implant design.

In the development of patient-specific cranial implants, computational tools have become foundational: CT-derived geometry, CAD software, and computer-aided manufacturing are now standard components of the fabrication pipeline. Yet for the most anatomically complex cases, an often-underappreciated discipline contributes meaningfully to final implant quality: medical artistry.

Trained medical illustrators and sculptors bring a working knowledge of human anatomy alongside fine motor skills developed through formal study of biological structures. In the context of cranial implant design, this expertise addresses a gap that automated segmentation and algorithmic surface modeling do not fully close, the gap between technically derived geometry and the nuanced, three-dimensional form of an individual patient’s skull.

Where Automation Falls Short

Automated segmentation of CT imaging data is highly effective for standard anatomical presentations. Software tools can rapidly identify bone boundaries, generate surface meshes, and produce implant geometries aligned to defect margins. For straightforward cases involving clean, well-defined defects with consistent surrounding bone, this workflow is efficient and reliable.

Complex cases introduce variables that degrade automated output quality. Patients presenting for cranioplasty often have prior surgical histories involving titanium mesh, fixation hardware, or earlier implants. Metal artifacts in CT imaging scatter signal across adjacent structures, obscuring true bone margins and producing irregular surface artifacts in digital models. Bone fragments retained within or adjacent to a defect introduce additional geometric complexity. In cases involving frontal sinus anatomy, orbital rims, or the temporal fossa, the underlying three-dimensional form is inherently intricate and varies considerably between individuals.

In these scenarios, automated geometry requires correction. The question is whether that correction is performed computationally, manually, or through a combination of both.

The Medical Artist’s Contribution

A medical artist working in cranial implant design approaches the problem as both a scientific and a craft challenge. Working from CT data, physical casts when available, and reference anatomy, the artist refines implant geometry to achieve the contour continuity and dimensional accuracy that automated tools approximate but may not achieve.

Hand-sculpting of physical prototypes, typically in wax or another workable medium, allows the artist to evaluate form in three dimensions in real time, incorporating subtle corrections to curvature, edge profile, and surface transition that are difficult to specify parametrically. This tactile, iterative process produces a geometry that can then be digitized and used to drive final fabrication.

The discipline of medical illustration itself provides relevant grounding. Illustrators trained in anatomical rendering develop an accurate internalized model of skeletal form, proportional relationships, and regional variation. This knowledge base informs decisions about how a restored cranial contour should appear and function, not only in terms of filling a defect, but in terms of restoring the aesthetic and structural continuity of the skull as a whole.

Application to Specific Defect Types

The contribution of medical artistry is most evident in defect types that challenge computational approaches.

Large bilateral frontal defects, which span the midline and affect the forehead contour visible under the scalp, require careful attention to symmetry and projection. Small asymmetries that automated tools might propagate from imaging artifacts translate into visible or palpable irregularities in the final implant. An experienced medical artist working on such a case applies judgment about bilateral symmetry that a purely data-driven workflow does not automatically provide.

Defects involving prior mesh (where titanium or synthetic mesh was placed as a temporary or permanent measure) present geometry that automated tools often struggle to interpret cleanly. The mesh itself may be deformed, partially incorporated into tissue, or misregistered in imaging. Designing an implant to fit over, around, or in replacement of such mesh requires spatial reasoning about a three-dimensional problem that benefits from human interpretation.

Frontal sinus involvement is another complexity requiring nuanced handling. The posterior wall of the frontal sinus, when preserved, creates a boundary condition for the implant that varies in position and curvature between patients. Matching the implant’s inferior geometry to this structure without creating dead space or sinus communication depends on accurate interpretation of the imaging and careful shaping of the implant’s inferior margin.

Integration with Digital Fabrication

The inclusion of medical artistry in the implant design process does not replace digital fabrication; it refines the input to it. The output of the artist’s refinement process is a physical or digitized geometry that enters the same CAD-to-manufacturing pipeline used for computationally derived designs.

This hybrid workflow (computational baseline, expert manual refinement, digital fabrication) represents one approach to achieving reliable fit in high-complexity cases. It acknowledges that some categories of anatomical reconstruction benefit from human perceptual and spatial reasoning capabilities that current automated tools do not replicate.

For manufacturers specializing in difficult implant cases, the investment in medical artistry expertise reflects a positioning choice: to address the cases that general-purpose fabrication workflows handle poorly, and to deliver implant fit quality that supports efficient surgical execution even in anatomically demanding scenarios.

Broader Implications for Reconstructive Device Design

The integration of artistic and scientific expertise in medical device design is not unique to cranioplasty. Prosthetics, maxillofacial reconstruction, and orbital floor repair all involve structures where the aesthetic and functional demands on a device require both technical precision and an understanding of anatomical form that extends beyond engineering parameters alone.

As digital tools continue to improve, with advances in AI-assisted segmentation, generative geometry optimization, and high-resolution additive manufacturing, the role of manual artistry in the workflow will evolve. But the underlying requirement it addresses, the need to produce implants that accurately represent individual human anatomy in three dimensions, will remain central to the discipline of patient-specific reconstruction.

For related discussion of fabrication materials and case complexity, see the companion articles on CT-to-implant design workflows and bilateral craniotomy and frontal bone reconstruction.

Cranioplasty, the surgical repair of skull defects, has undergone a significant technical evolution over the past two decades. What was once largely dependent on intraoperative improvisation and generic implant shaping is now anchored in preoperative digital planning and patient-specific device fabrication. For neurosurgeons and craniofacial surgeons managing large, irregular, or anatomically complex defects, this shift has direct implications for surgical efficiency, implant longevity, and patient outcomes.

This article examines the workflow behind modern custom cranioplasty, from initial imaging acquisition through implant delivery, with particular attention to the design considerations that distinguish high-fit, patient-specific implants from off-the-shelf alternatives.

The Role of CT Imaging in Implant Planning

The foundation of any patient-specific cranial implant is a high-resolution CT scan of the skull. Thin-slice axial imaging (typically acquired at 1 mm intervals or finer) generates the volumetric dataset from which implant geometry is derived. This data captures the contour of the existing cranium, the margins of the defect, and any relevant underlying anatomy.

Translating raw DICOM data into an implant geometry requires more than automated segmentation. Software-based reconstruction provides a baseline model, but artifacts from prior hardware, bone fragment irregularities, or previous cranioplasty mesh can introduce distortions that automated tools do not reliably resolve. This is one reason that many specialized implant manufacturers incorporate a review step (often involving experienced medical modelers or trained medical artists) to refine digital geometry before production begins.

The goal at this stage is not simply to fill the void but to restore the natural curvature and thickness of the surrounding skull. An implant that achieves anatomical contour continuity reduces palpable edges, supports overlying soft tissue, and minimizes the mechanical stress concentrations that can occur at implant-bone interfaces.

From Digital Model to Physical Device

Once the implant geometry is validated, fabrication can proceed through one of several manufacturing pathways depending on the chosen material and the complexity of the case. Computer-aided design (CAD) files are typically used to drive CNC milling, additive manufacturing processes, or vacuum-formed sheet material shaping.

Polymethylmethacrylate (PMMA) has been one of the most widely used materials for custom cranial implants due to its biocompatibility, radiolucency, ease of intraoperative modification, and established clinical record. Patient-specific PMMA implants can be pre-formed to match the CT-derived geometry, eliminating the need for surgeons to hand-mix and shape the material intraoperatively, a process that carries risks of thermal injury and dimensional imprecision.

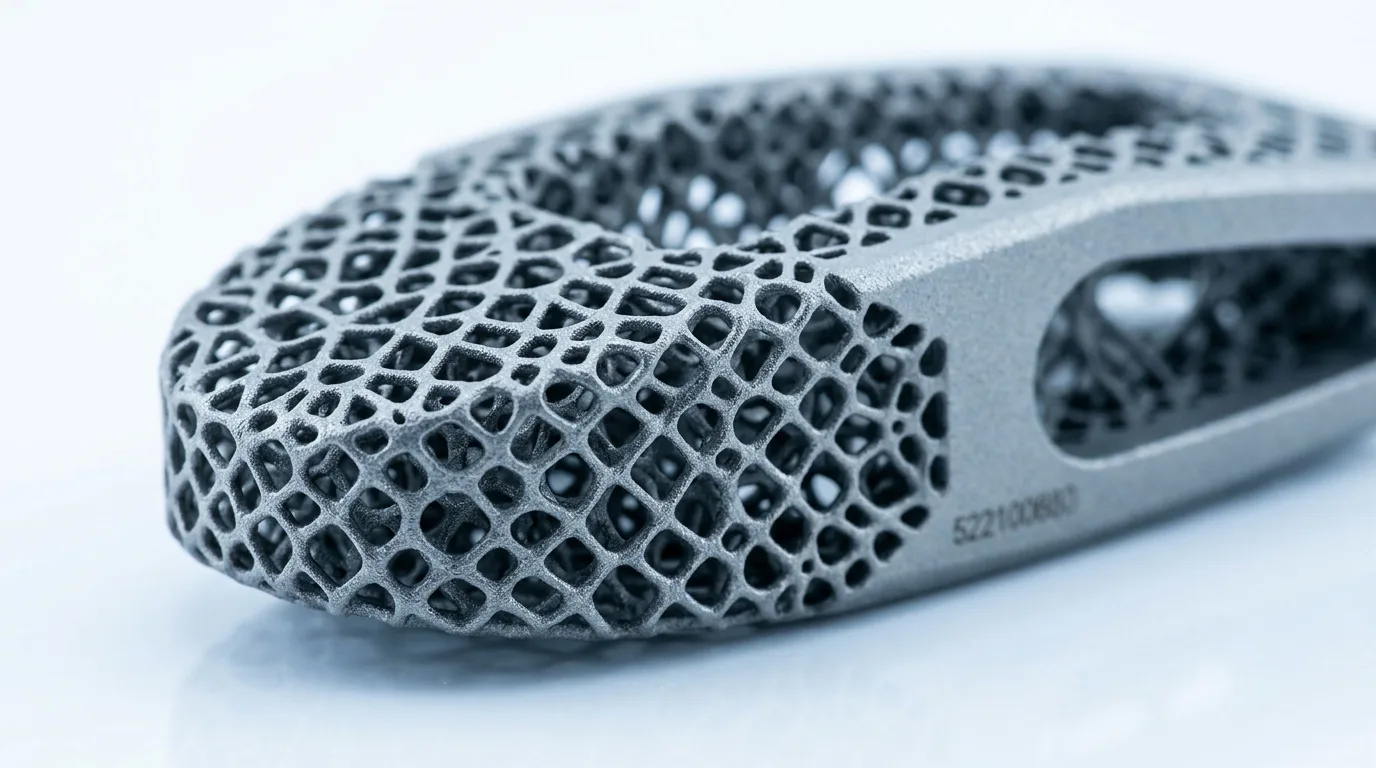

Porous polyethylene (PPE), titanium mesh, and hydroxyapatite-based composites each offer distinct mechanical and biological profiles. Titanium provides high structural rigidity useful in load-bearing frontal and temporal locations. Hydroxyapatite composites are osteoconductive, supporting potential bone ingrowth in select patient populations. The material selection is ultimately a clinical decision, shaped by defect location, patient age, prior surgical history, and surgeon preference.

The “Drop-In Fit” Objective

A consistent benchmark in patient-specific cranioplasty is achieving what practitioners sometimes describe as a “drop-in fit”, an implant that seats accurately within the defect margins without requiring significant intraoperative adjustment. This outcome depends on the precision of both the imaging acquisition and the fabrication process.

Defect margins that are irregular, beveled, or partially occluded by existing hardware present the greatest fitting challenges. Cases involving bilateral craniotomies, where the defect spans the midline, require careful attention to bilateral symmetry. Frontal bone defects that extend into orbital or nasal regions introduce complex three-dimensional geometry that flat or generically shaped implants cannot address.

For these high-complexity scenarios, manufacturers who invest in manual refinement steps alongside digital tooling tend to produce implants with more reliable fit characteristics. A technically precise implant reduces operative time, decreases the risk of implant migration or rocking, and supports a more predictable closure.

Preoperative Planning and Surgical Workflow Integration

Beyond the physical implant, custom cranioplasty workflows increasingly support preoperative surgical planning tools. Physical or 3D-printed skull models derived from the same CT dataset allow the surgical team to rehearse implant placement, confirm orientation, and identify potential interference points before the patient enters the operating room.

This integration of the implant design process with the surgical plan represents a broader shift toward procedural efficiency in reconstructive cranial surgery. Reducing intraoperative uncertainty in complex cranioplasty cases has documented implications for operative duration, blood loss, and anesthetic risk, particularly relevant for patients who have already undergone multiple prior procedures.

Quality and Regulatory Considerations

Patient-specific cranial implants in the United States are regulated by the Food and Drug Administration as Class II or Class III devices depending on their material and indication. Custom devices may be fabricated under the FDA’s Custom Device Exemption (CDE), which permits manufacture of a device that differs from a cleared predicate to meet the unique needs of an individual patient, subject to specific documentation and patient acknowledgment requirements.

Manufacturers operating under the CDE are not required to obtain 510(k) clearance for each custom implant, but they remain subject to FDA Quality System Regulation requirements, including design controls, process validation, and complaint handling. Surgeons working with custom implant providers should verify that their manufacturing partner maintains appropriate regulatory compliance documentation.

Summary

Custom cranioplasty today is a tightly coordinated process linking diagnostic imaging, computational design, skilled fabrication, and surgical execution. The shift from generic implants to patient-specific devices has expanded the range of defects that can be addressed with predictable outcomes. As imaging resolution and manufacturing precision continue to improve, the clinical standard for what constitutes an acceptable cranioplasty result continues to rise.

For further reading on complex cranial defect management and implant selection, see the related articles on bilateral craniotomy reconstruction and the role of medical artistry in implant design.
